Automatically Splitting Large Models for Better Performance

· 7 min read
xeokit
xeokit

To most efficiently view IFC model files in xeokit, we first convert them to XKT files. This conversion allows for fast loading into the browser. We have extended xeokit to automatically split IFC files into multiple XKT files during conversion. This feature enables us to view even bigger models in the browser, like the 2GB Baku Stadium IFC model, shown in the screenshot above.

By splitting models during conversion, we improve xeokit's performance and stability. This is achieved by reducing the memory stress on the converter tools and the xeokit viewer components. These components perform much more reliably and faster when dealing with smaller files (e.g., 20MB) than larger files (e.g., 500MB). Larger files may cause difficulty allocating sufficient system memory for conversion and parsing.

In this tutorial, we’ll show how to use this new feature with our conversion and model viewing components. The IFC file we’ll use for this tutorial is the Karhumaki Bridge model from http://drumbeat.cs.hut.fi/ifc/. It’s not exactly a huge model, but good for demonstration purposes. It does contain a lot of rebar objects though (concrete reinforcing), so nevertheless is a fairly complex model, geometrically speaking.

How Splitting Helps

Splitting prevents NodeJS from crashing​

Before we dive into how to use our new model splitting feature, let's briefly examine one of the issues that splitting is designed to avoid. As described in this tutorial, we use our ifc2gltfcxconverter tool to convert IFC files into glTF geometry and JSON metadata files. We then use our convert2xkt tool to convert those glTF+JSON files into XKT files for fast loading into xeokit.

However, convert2xkt runs on NodeJS, which has its own limitations. Sometimes, NodeJS cannot allocate all the necessary memory, and it always has a hard 1GB limit on how much memory it can allocate for text strings in memory. When we try to process large glTF and JSON files, users often encounter the error shown below. We can avoid this error by using the splitting feature described in this tutorial.

node convert2xkt.js -s myModel.glb -m myModel.json -o myModel.xkt -l

#
# Fatal error in , line 0
# Fatal JavaScript invalid size error 169220804
#
#
#FailureMessage Object: 0x7ffd9e6d5470
1: 0xbe67b1  [node]
2: 0x1e4d6a4 V8_Fatal(char const*, ...) [node]
3: 0xf00158  [node]
4: 0x10af622  [node]
5: 0x10af8e2  [node]
6: 0x12beb8b v8::internal::Runtime_GrowArrayElements(int, unsigned long*, v8::internal::Isolate*) [node]
7: 0x16fb6f9  [node]
Trace/breakpoint trap (core dumped)

Splitting Models with ifc2gltf

We use the ifc2gltfcxconverter tool to convert IFC files into glTF geometry and JSON metadata files.

We have now extended this tool with the option to split its output into multiple files, accompanied by a JSON manifest that list them.

This new option is activated using the -s parameter.

The parameters we use in this tutorial are:

  • -i specifies the IFC file to convert
  • -o specifies the name to prefix on each output glTF file
  • -m specifies the name to prefix on each JSON metadata file
  • -s specifies the maximum number of megabytes in each XKT file - smaller value means more output files, lower value means less files
ifc2gltfcxconverter -i Karhumaki-Bridge.ifc -o model.glb -m model.json -s 100

The files output by ifc2gltf are:

.
├── model.glb.manifest.json
├── model_1.glb
├── model_1.json
├── model_2.glb
├── model_2.json
├── model_3.glb
├── model_3.json
├── model_4.glb
├── model_4.json
├── model_5.glb
├── model_5.json
├── model_6.glb
├── model_6.json
├── model_7.glb
├── model_7.json
├── model_8.glb
├── model_8.json
├── model_9.glb
├── model_9.json
├── model.glb
└── model.json

The model.glb.manifest.json manifest looks like this:

{
    "inputFile": "Karhumaki-Bridge.ifc",
    "converterApplication": "ifc2gltfcxconverter",
    "converterApplicationVersion": "2.8.6",
    "conversionDate": "2023-09-08 03:01:39",
    "gltfOutFiles": [
        "model.glb",
        "model_1.glb",
        "model_2.glb",
        "model_3.glb",
        "model_4.glb",
        "model_5.glb",
        "model_6.glb",
        "model_7.glb",
        "model_8.glb",
        "model_9.glb"
    ],
    "metadataOutFiles": [
        "model.json",
        "model_1.json",
        "model_2.json",
        "model_3.json",
        "model_4.json",
        "model_5.json",
        "model_6.json",
        "model_7.json",
        "model_8.json",
        "model_9.json"
    ]
}

Converting Split Models with convert2xkt

We use the convert2xkt tool to convert glTF+JSON files into XKT files for fast loading into xeokit.

To integrate with the new ifc2gltfcxconverter splitting option, the convert2xkt tool can now batch-convert multiple glTF+JSON files into a set of XKT files, in one invocation.

When this option is used, convert2xkt outputs several XKT files, along with a JSON manifest file that lists them.

The parameters we use are:

  • -a specifies the the path to the input manifest, model.glb.manifest.json
  • -o specifies the path to the output manifest, model.xkt.manifest.json
node convert2xkt -a model.glb.manifest.json -o model.xkt.manifest.json

The files output by convert2xkt are:

.
├── model.xkt.manifest.json
├── model_1.xkt
├── model_2.xkt
├── model_3.xkt
├── model_4.xkt
├── model_5.xkt
├── model_6.xkt
├── model_7.xkt
├── model_8.xkt
├── model_9.xkt
└── model.xkt

The model.xkt.manifest.json manifest looks like this:

{
  "xktFiles": [
    "model.xkt",
    "model_1.xkt",
    "model_2.xkt",
    "model_3.xkt",
    "model_4.xkt",
    "model_5.xkt",
    "model_6.xkt",
    "model_7.xkt",
    "model_8.xkt",
    "model_9.xkt"
  ]
}

Viewing Split Models with the SDK

To integrate with the new ifc2gltfcxconverter splitting and convert2xkt batching-conversion options just mentioned, the XKTLoaderPlugin also now has the option to batch-load all XKT files listed in a manifest into a xeokit Viewer in one shot, combining them into a single SceneModel and a single MetaModel.

To load the set of XKT files we just created, simply provide the model.xkt.manifest.json to the XKTLoaderPlugin.load method, as shown below:

import { Viewer, XKTLoaderPlugin } from "https://cdn.jsdelivr.net/npm/@xeokit/xeokit-sdk/dist/xeokit-sdk.es.min.js";

const viewer = new Viewer({
  canvasId: "myCanvas"
});

viewer.scene.camera.eye = [26.54, 29.29, 36.20,];
viewer.scene.camera.look = [-23.51, -8.26, -21.65,];
viewer.scene.camera.up = [-0.2, 0.89, -0.33,];

const xktLoader = new XKTLoaderPlugin(viewer);

const sceneModel = xktLoader.load({
  manifestSrc: "model.xkt.manifest.json",
  id: "myModel",
});

const metaModel = viewer.metaScene.metaModels[sceneModel.id];

// Then when we need to, we can destroy the SceneModel
// and MetaModel in one shot, like so:

sceneModel.destroy();
metaModel.destroy();

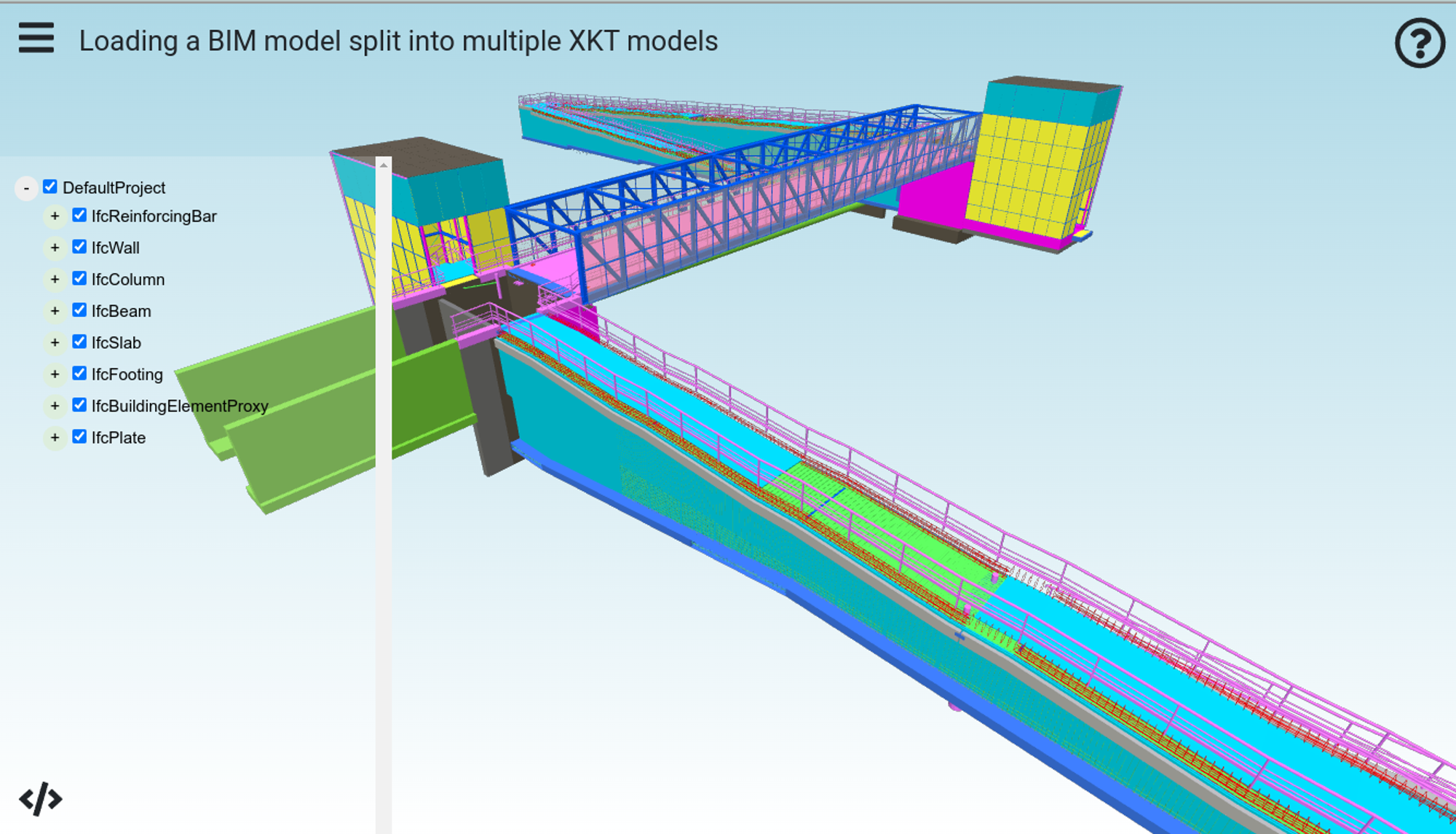

Shown below is the result. Notice how TreeViewPlugin has created a single tree in the left panel, for a single MetaModel. The geometry in the canvas is represented by a single SceneModel.

Run this example


Viewing Split Models with BIMViewer

BIMViewer is a browser-based BIM model viewing application bundled withe the xeokit SDK.

We’ve extended this application to load split models created with ifc2gltfcxconverter and convert2xkt as described above.

When loading a split model, BIMViewer will load all the XKT in one shot, combining them into a single tree view, and treat them as a single model, which you can also unload in one operation.

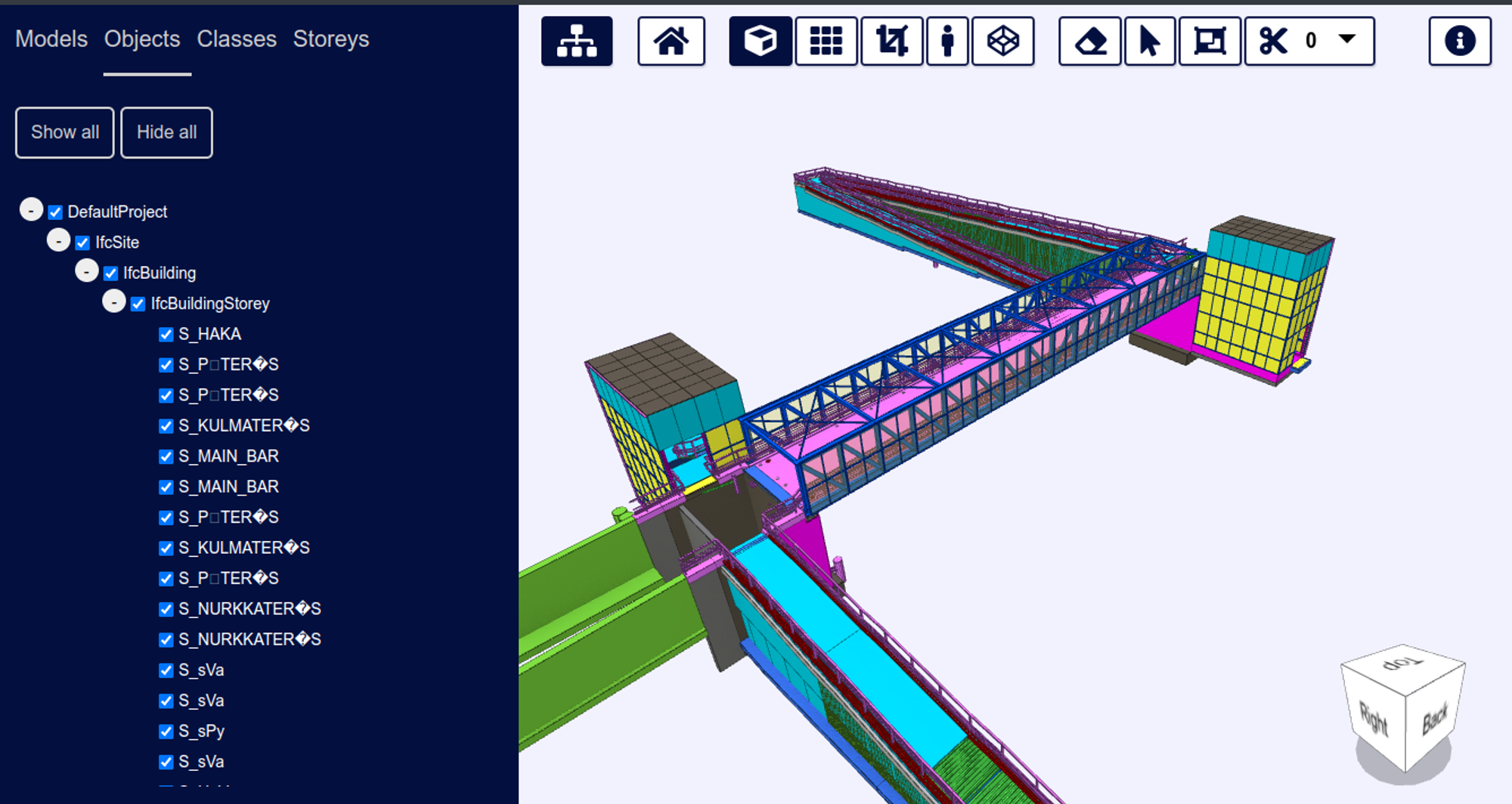

We’ll skip ahead a little bit and show our Karhumaki split model in BIMViewer:

Load the Karhumaki Project in BIMViewer


Shown below is the data directory structure for our Karhumaki demo project in BIMViewer.

The Kathumaki directory contains our project. The models subdirectory contains all the models within our project (just one, named Karhumaki-Bridge).

Notice the model.xkt.manifest.json and XKT files within our single model directory, which are the ones we just created with convert2xkt before.

.app/data/projects
  │
  └── Karhumaki
        │
        ├── index.json
        │
        └── models
              └──  Karhumaki-Bridge
                      ├── model.xkt.manifest.json
                      ├── model.xkt
                      ├── model_1.xkt
                      ├── model_2.xkt
                      ├── model_3.xkt
                      ├── model_4.xkt
                      ├── model_5.xkt
                      ├── model_6.xkt
                      ├── model_7.xkt
                      ├── model_8.xkt
                      └── model_9.xkt

Above our models directory, the index.json file tells BIMViewer what models are in the project (just the single Karhumaki-Bridge model). Within this file, as usual, the id of each model matches the name of that model's subdirectory in models. Each model's name is the human-readable name that's displayed in the BIMViewer ”Models” tab.

To indicate that the model is a multi-part model, with multiple XKTs, the model entry gets a manifest property containing the file name of our model.xkt.manifest.json file.

In viewerContent, we specify that our multipart model gets loaded immediately, as soon as the project is loaded.

{
  "id": "Karhumaki",
  "name": "Karhumaki",
  "models": [
    {
      "id": "Karhumaki-Bridge",
      "name": "Karhumaki Bridge",
      "manifest": "model.xkt.manifest.json"
    }
  ],
  "viewerConfigs": {
    "backgroundColor": [
      0.9,
      0.9,
      1.0
    ]
  },
  "viewerContent": {
    "modelsLoaded": [
      "Karhumaki-Bridge"
    ]
  },
  "viewerState": {
    "tabOpen": "models"
  }
}

See the full documentation of https://github.com/xeokit/xeokit-bim-viewer for more information on deploying a model to BIMViewer.
