How to extract ifc building storey ?
· One min read
ifcBuildingStorey often contains the information about the floor level heights, i.e. their elevations as meta data. How to extract this data?
The following code snippet shows how this can be done:
const ifcBuildingStoreys = viewer.metaScene.metaObjectsByType["IfcBuildingStorey"];
const ifcBuildingStorey = ifcBuildingStoreys["298uW9PODAmgWwAQB0IT3e"];
const elevation = ifcBuildingStorey.attributes.elevation;

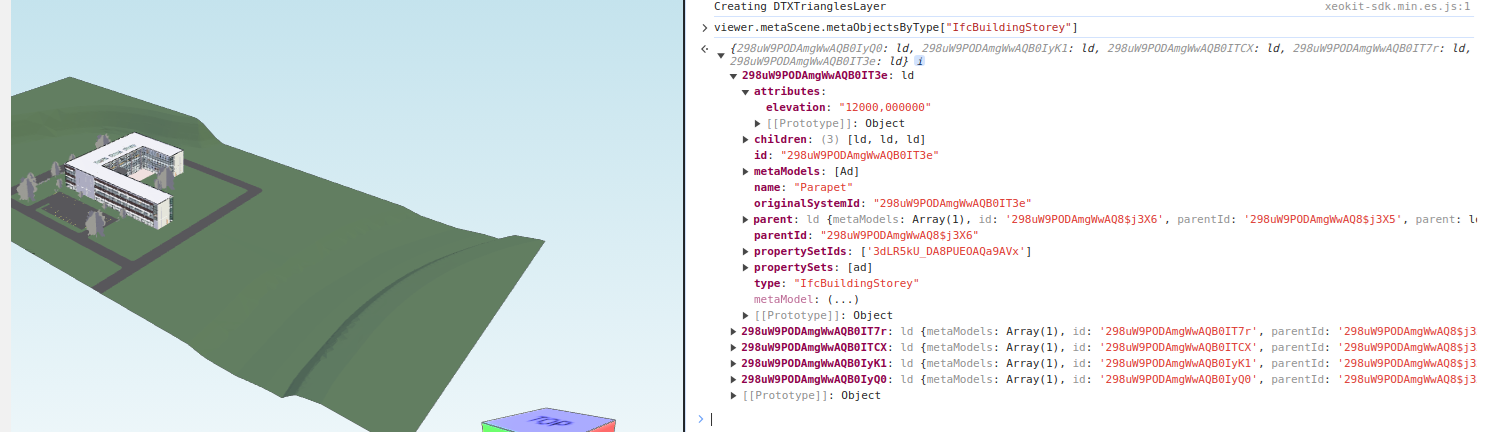

Also, a snapshot of making this query in the JS console on one of the examples:
